AAIO V1 Introduction
Introducing the AAIO V1

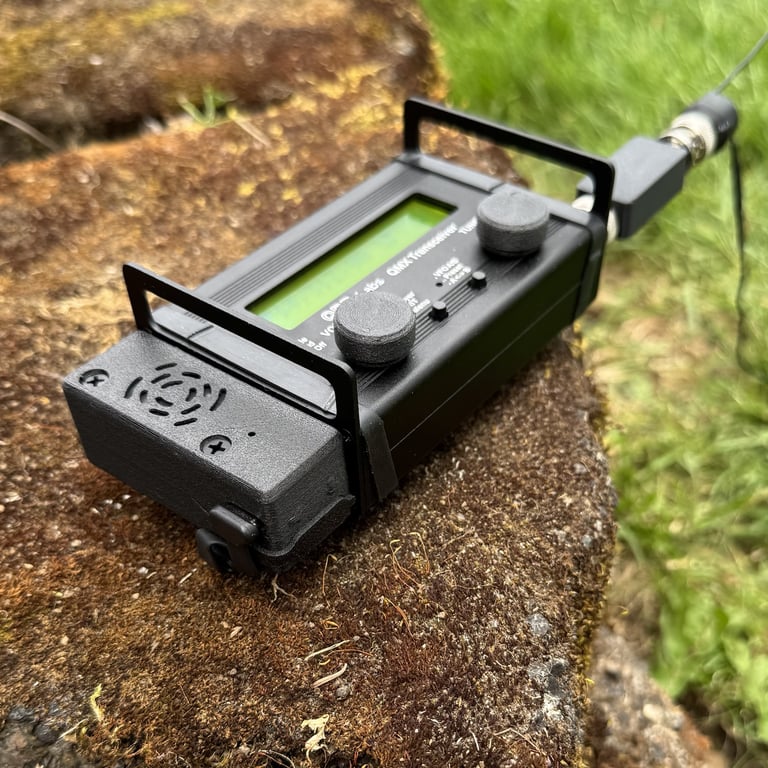

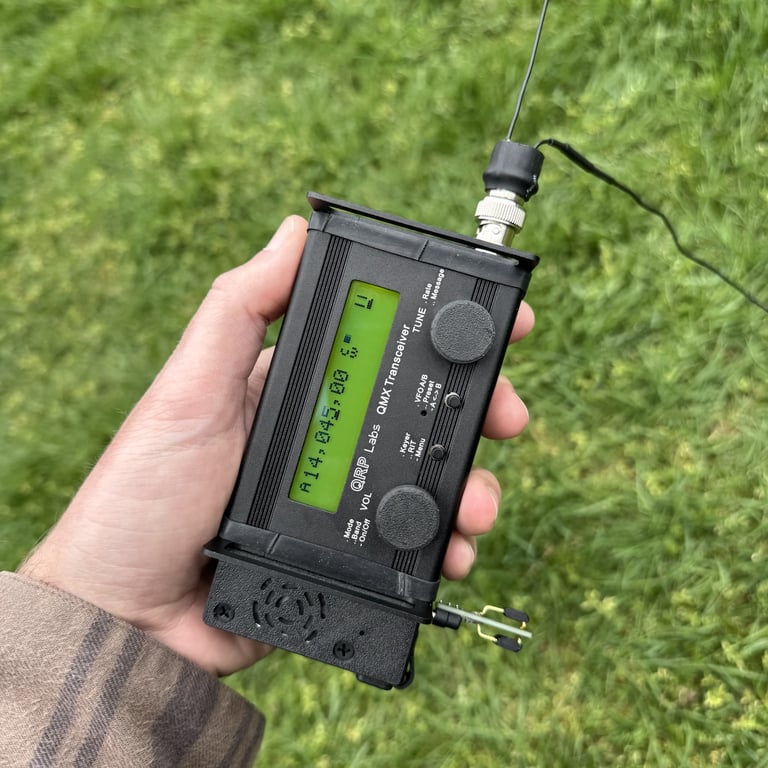

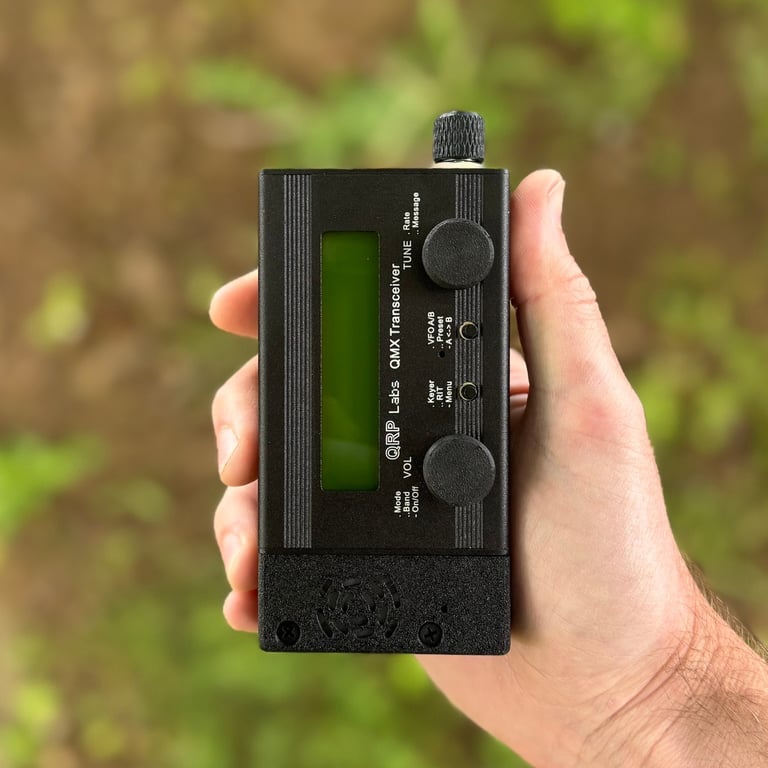

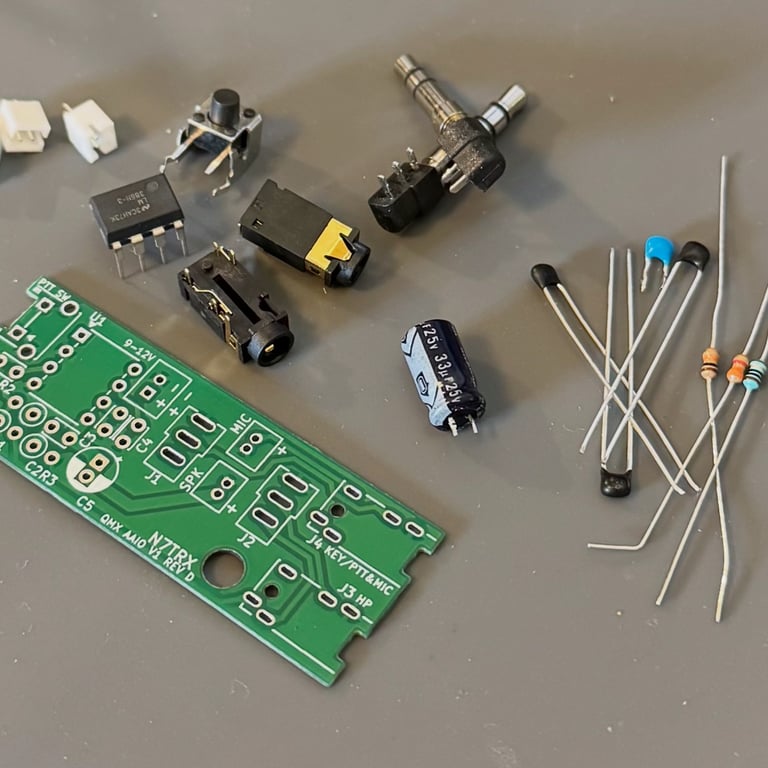

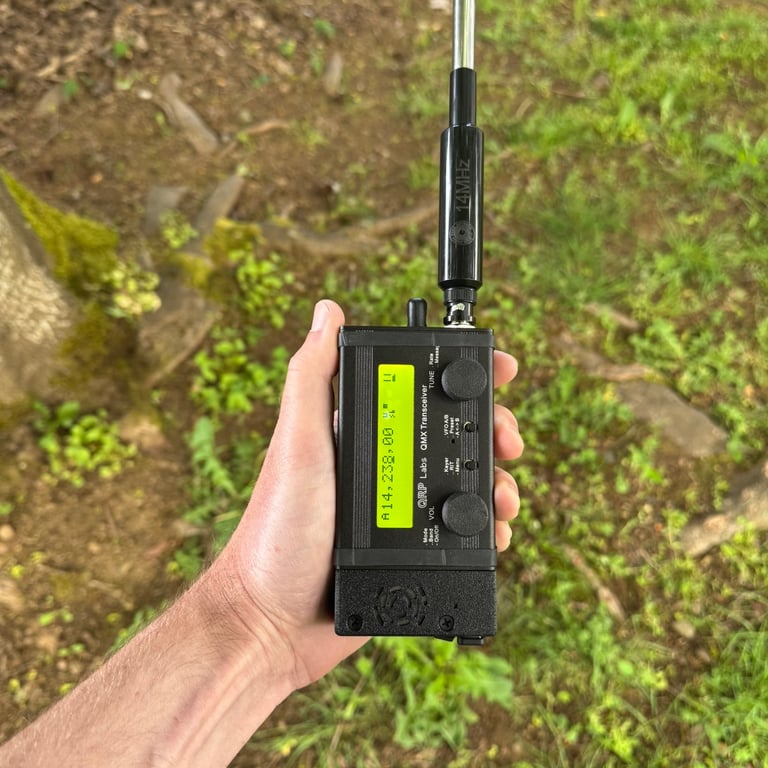

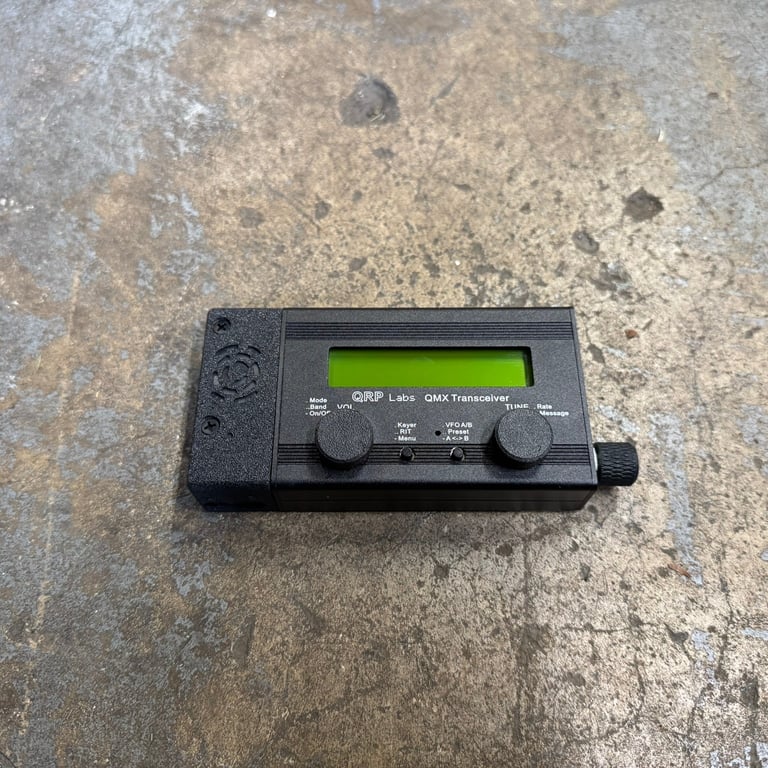

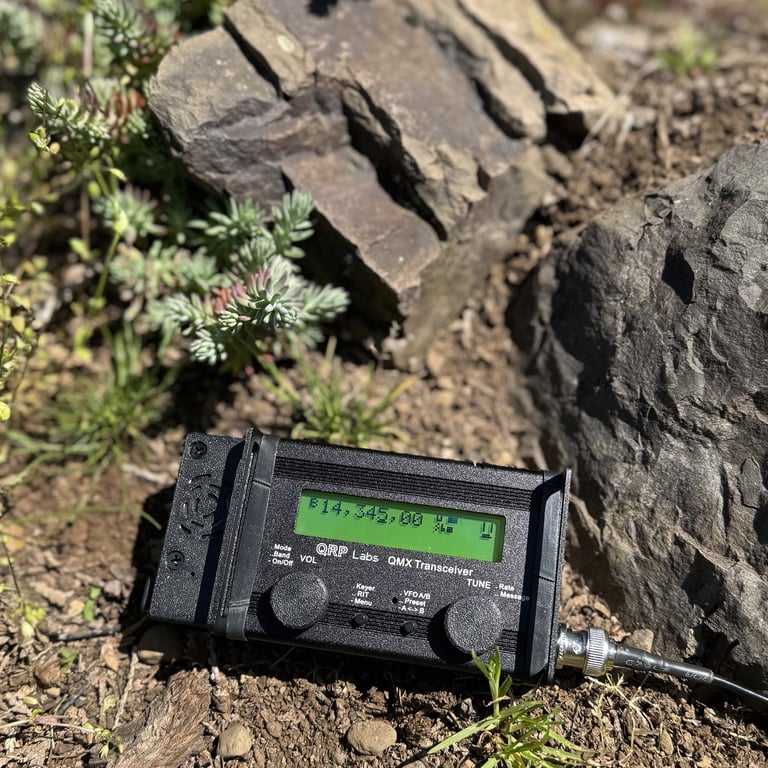

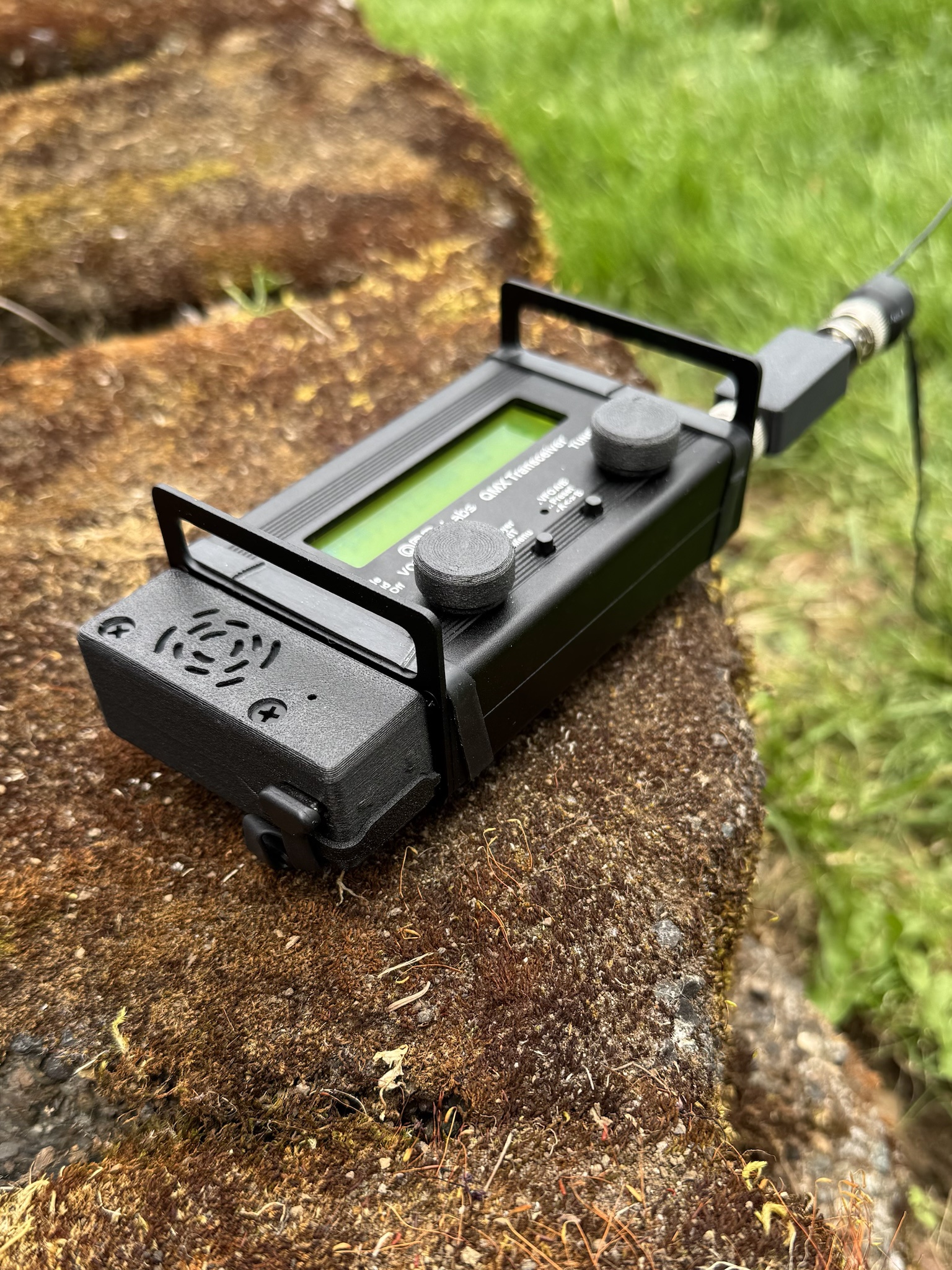

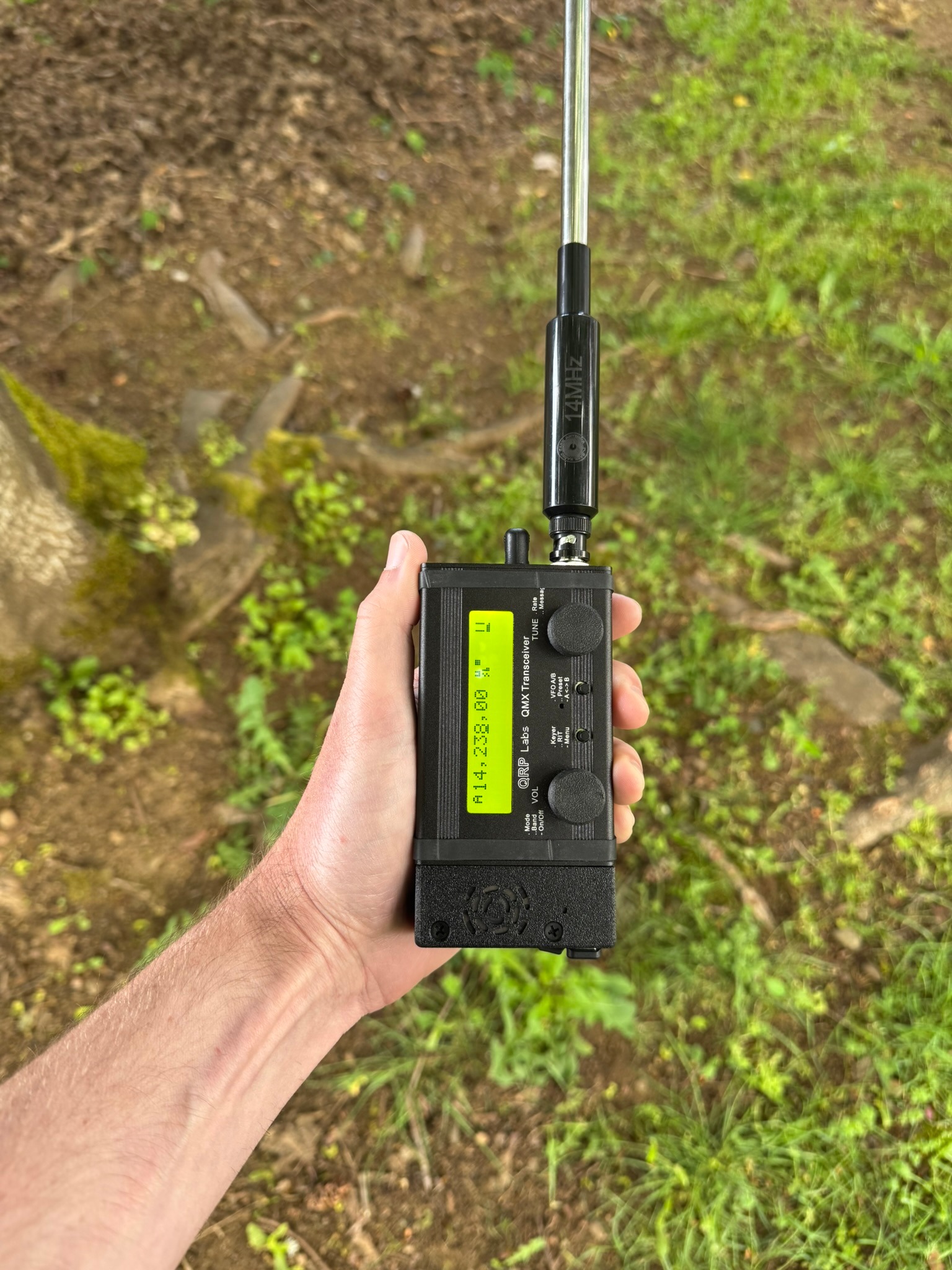

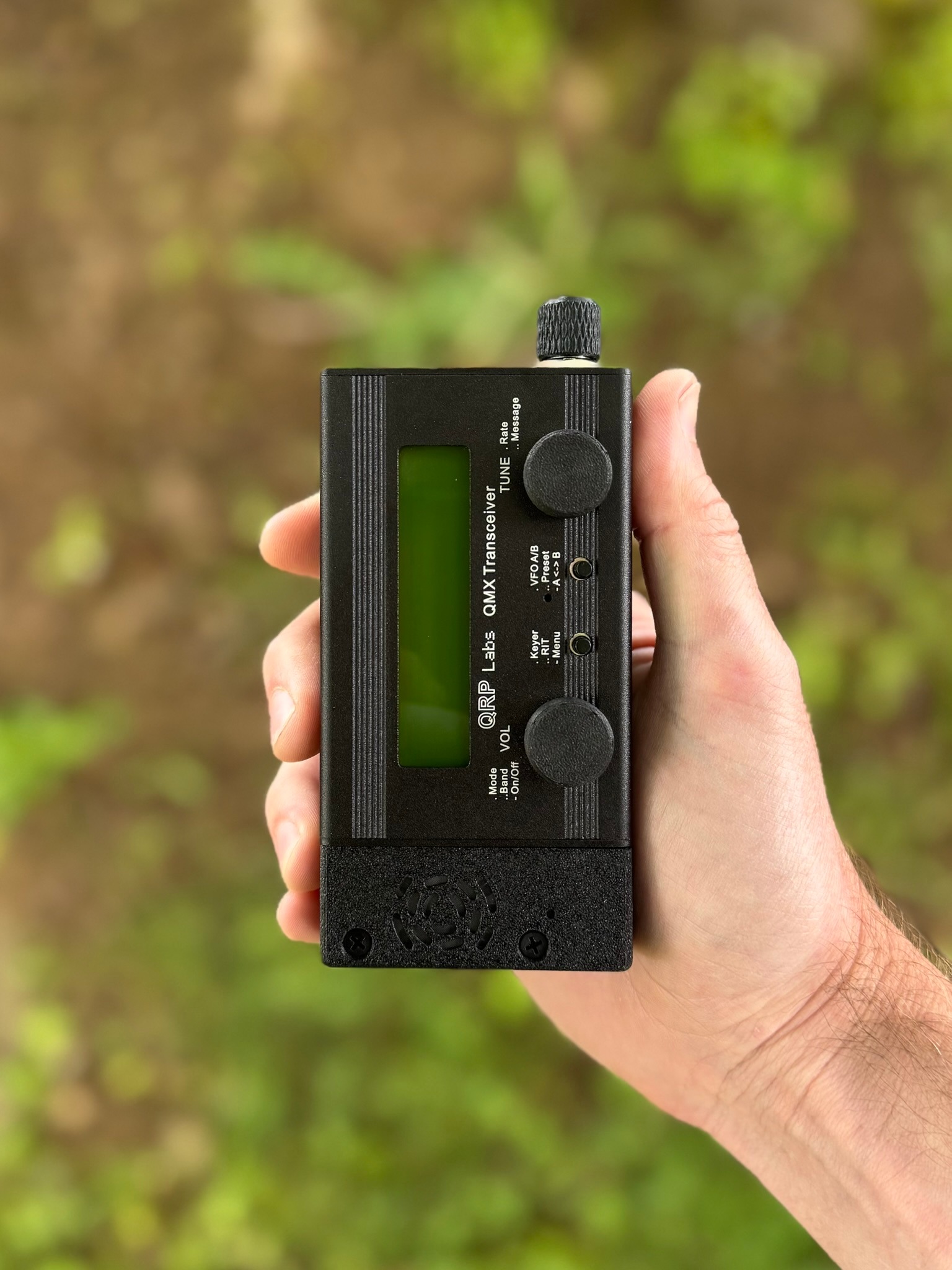

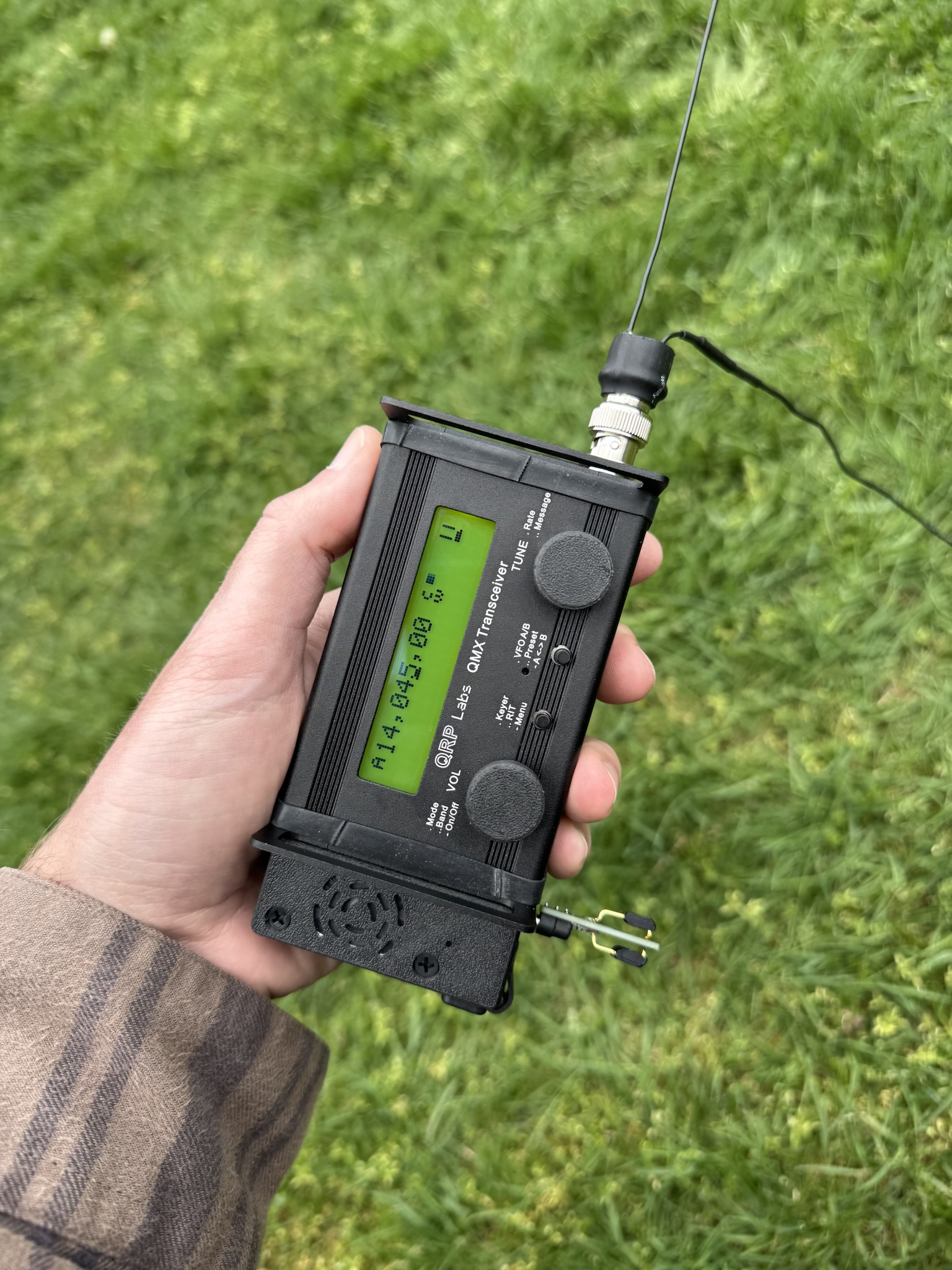

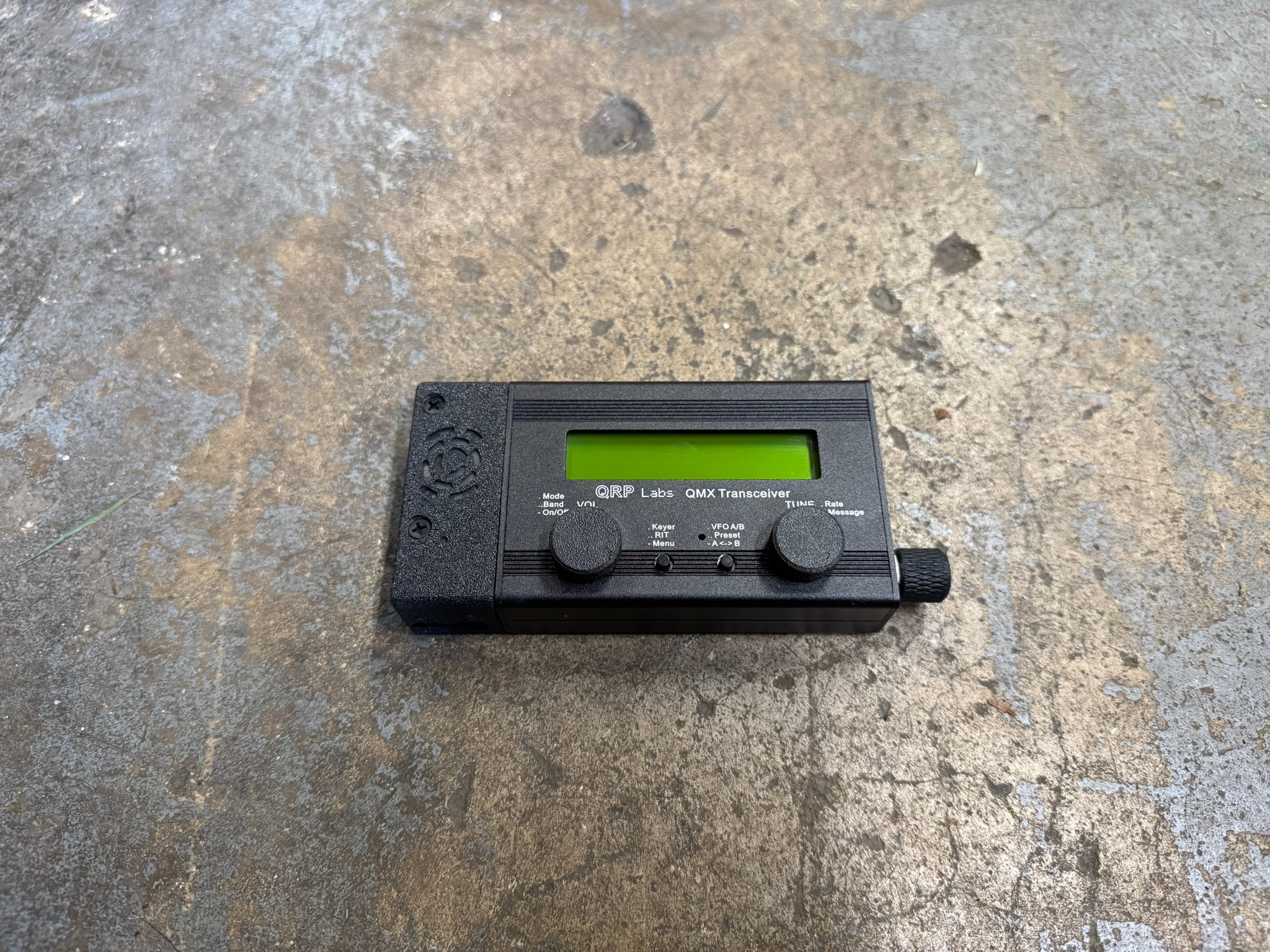

The Almost-All-in-One solution for the QRP Labs QMX and QCX— A modular plug in board for easy to deploy field operations.
The AAIO turns the already fantastic QMX into the ultimate lightweight adventure rig by featuring:

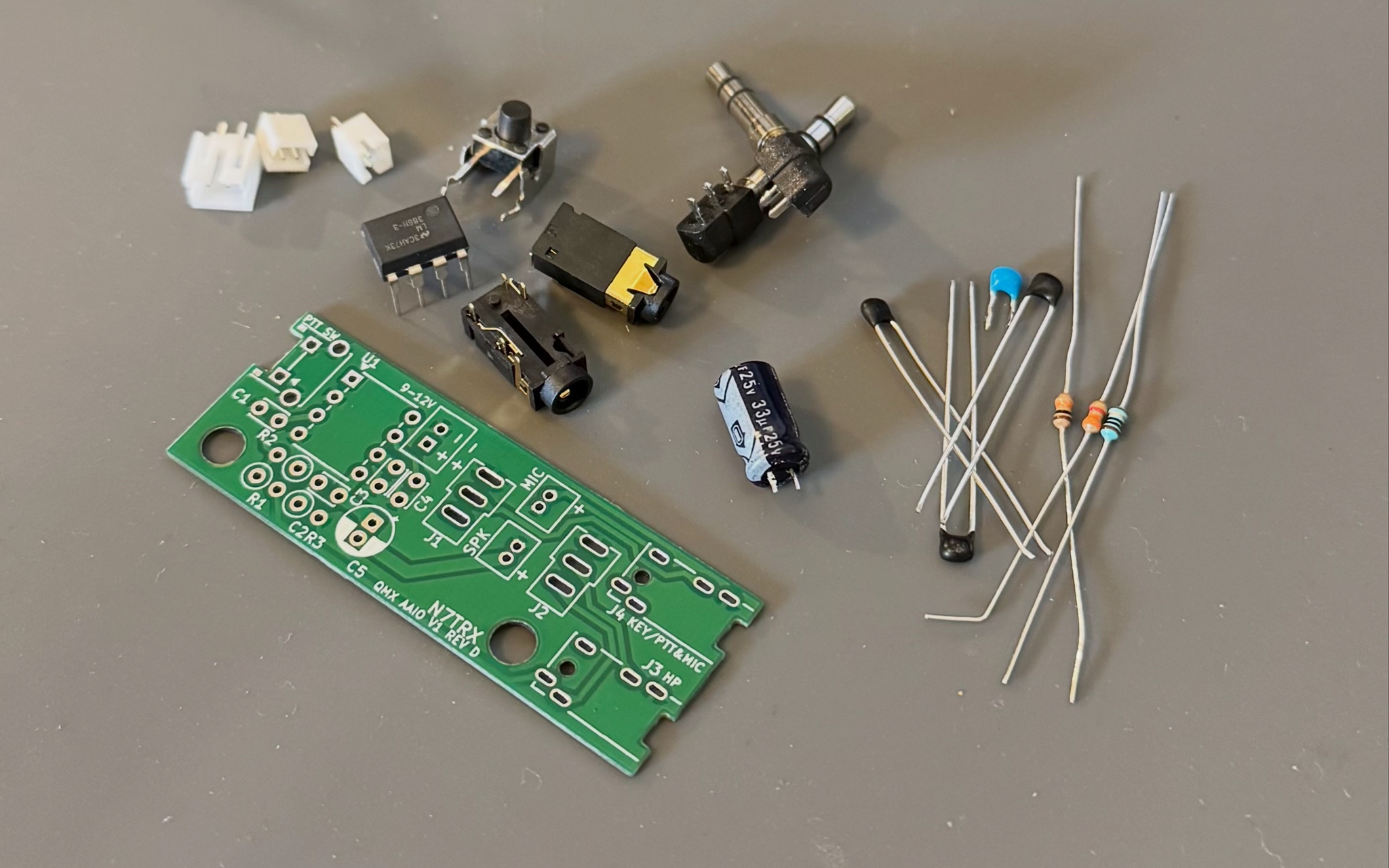

Onboard Audio: A TI LM386-4 provides up to 1W to the internal speaker.
Voice-Ready option: Build with PTT and Microphone for compact SSB work.
Capacitive touch option: Build with K6ARK touch board to incorporate capacitive touch for CW.

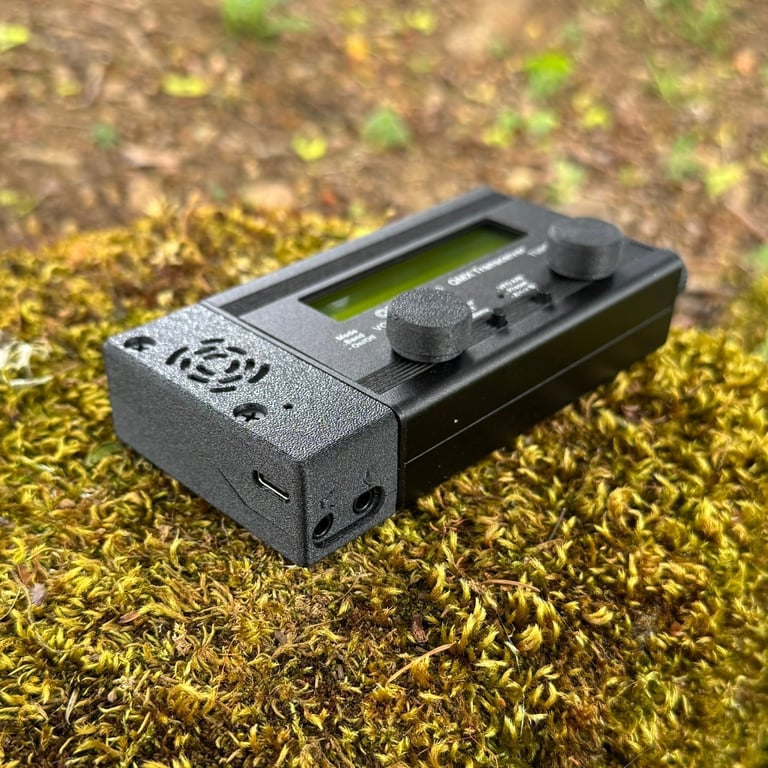

Expandable Relocation: Jack relocation for headphones and paddle, or hand mic.

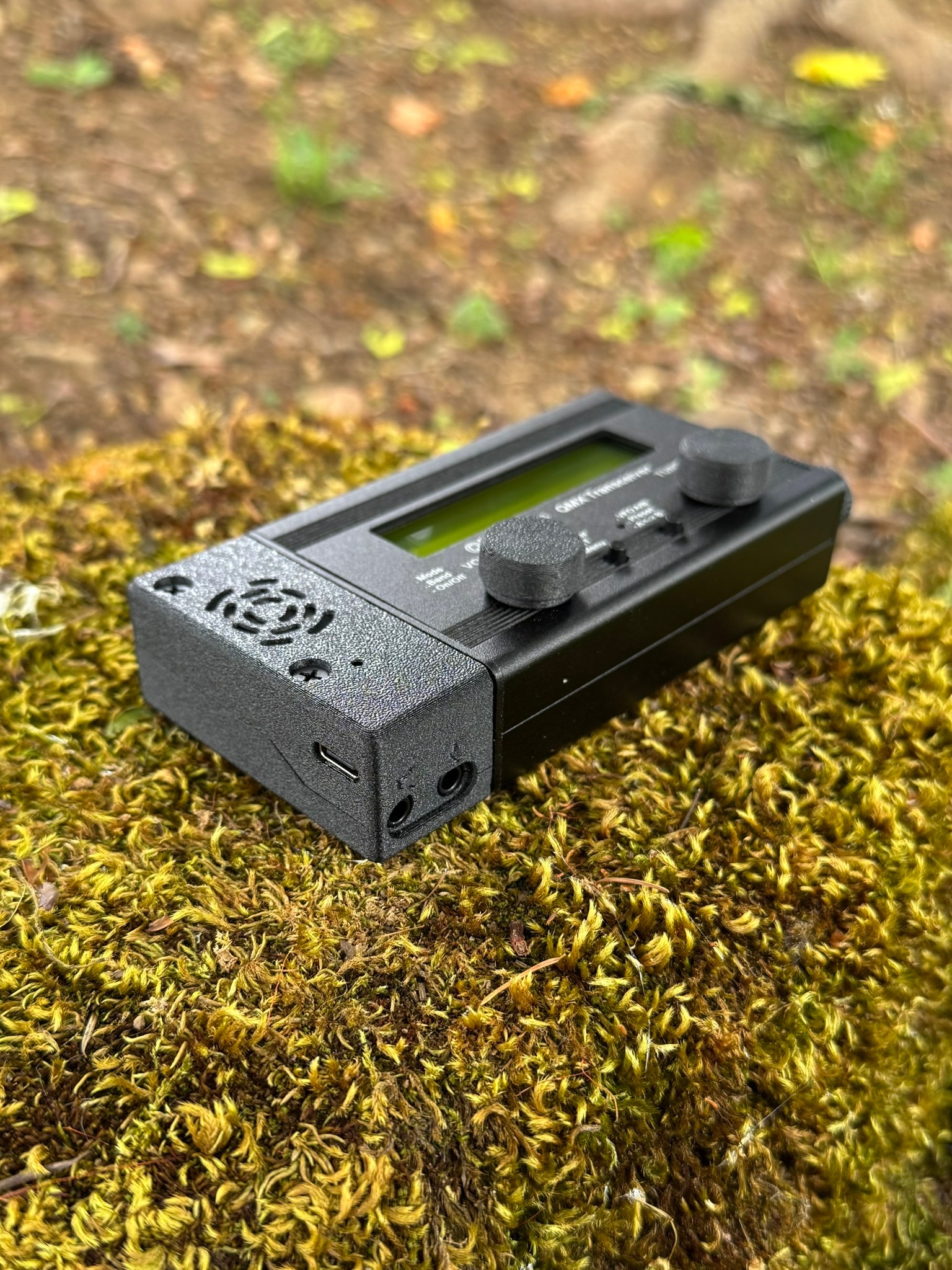

Modular power options: Trigger 9v or 12v with USB-C or stick with a 5.5x2.1mm DC Jack.
This board is intended to be highly adaptable allowing the users and community to build and experiment with different form factors and applications.
Subscribe on the projects page for updates and availability alerts.
