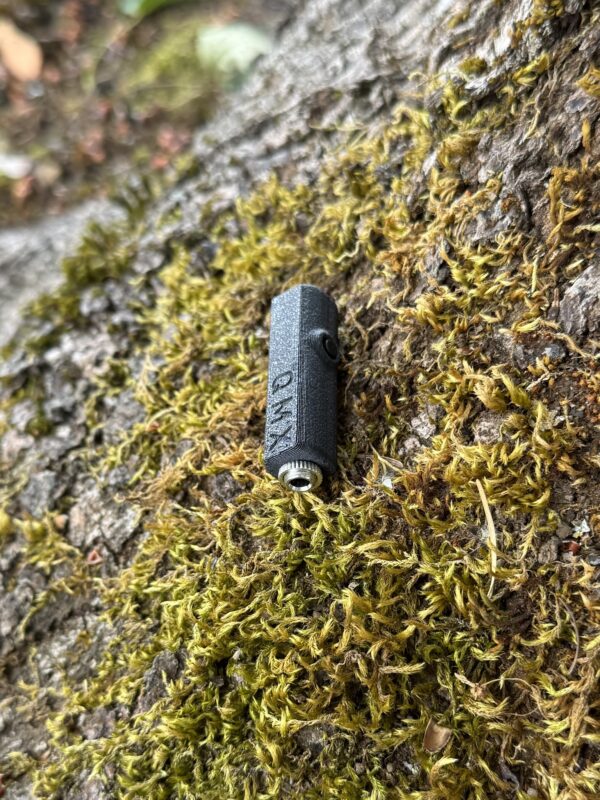

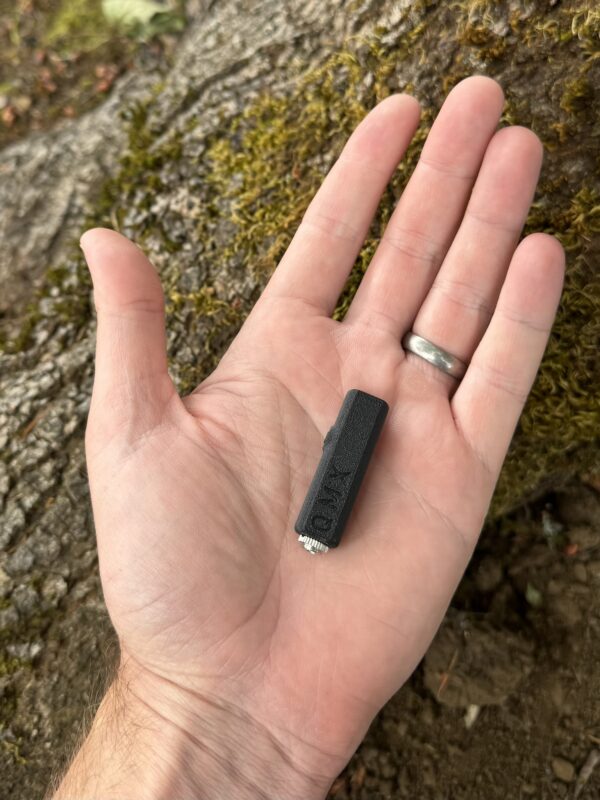

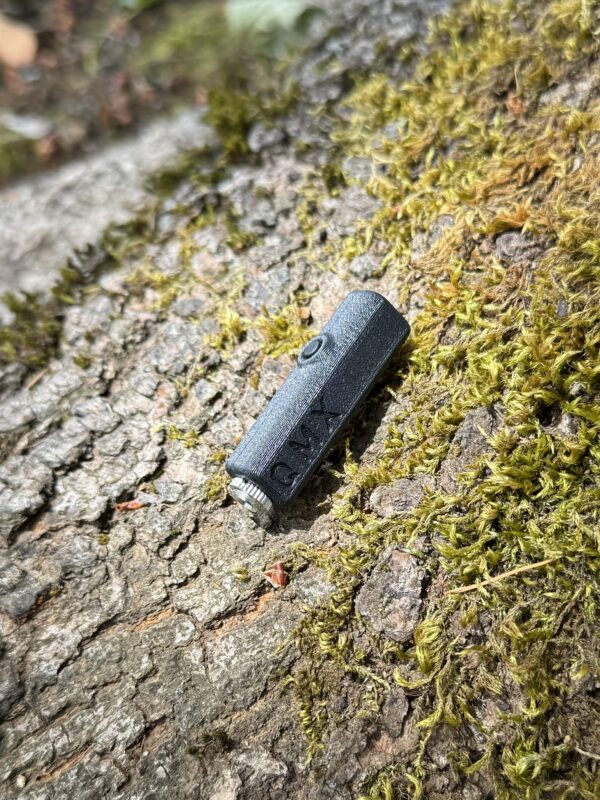

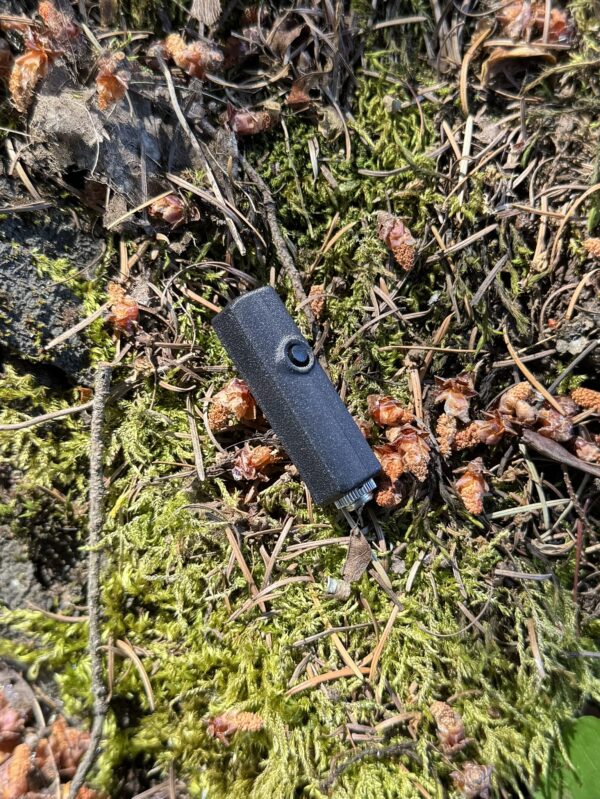

Remixed from the legendary K6ARK mini mic! Coming in at only 4.8 grams, this ultralight hand mic is a fantastic match for today’s compact, lightweight transceivers. Packaged as a kit, soldering required.
Differences of the remixed enclosure compared to the original:
- Improved retention and reduced air leakage around the mic element.
- Single tuned acoustic port to provide sufficient coupling while reducing phase cancelation and wind noise.
- Redesigned exterior profile to reduce material and round off the enclosure for improved feel and aesthetics.
- Redesigned the enclosure clips to reduce separation and improve security.
Download the print file for free: Printables.
Original K6ARK design: Printables.
Included In Kit:
- 3.5mm TRS jack
- Tactile switch
- 30 ga silicon jacketed wire
- Selected microphone element
- 3D printed enclosure
Microphone Element Compatibility:
- -24dB AOM: Part number: AOM-5024L-HD-F-R
-
- Sensitivity compatibility: QMX/QMX+, Pebble HF, HF Signals.
-
- -42 dB CMA: Part number: CMA-6542TF-K
-
- Sensitivity compatibility: Elecraft KX2/KX3, FX-4CR, uSDX.
-
Ordering options:
Mic Element
- -24dB AOM: Includes the AOM-5024L-HD-F-R mic element
- -42dB CMA : Includes the CMA-6542TF-K mic element
Enclosure
- Blank: Both sides of the enclosure are blank.
- Labeled “QMX”: Both sides of the enclosure are labeled “QMX”.
