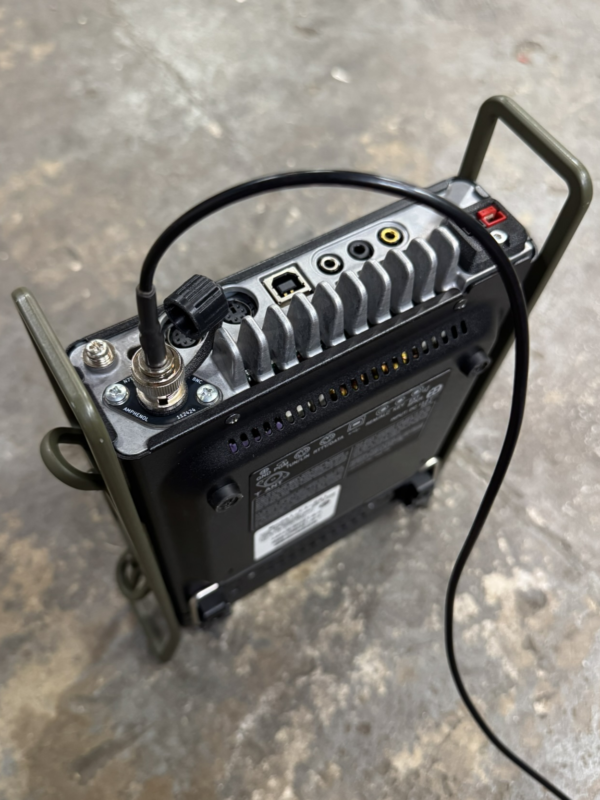

With the popularity of Parks On The Air (POTA) and Summits On The Air (SOTA), more operators are optimizing their gear for rapid field deployment. Converting to BNC significantly reduces the size and weight of your kit while eliminating time-consuming threading, allowing you to instantly attach your coax with a secure quarter-turn twist lock.
Ditch the UHF to BNC adapter and convert your radio directly to BNC.

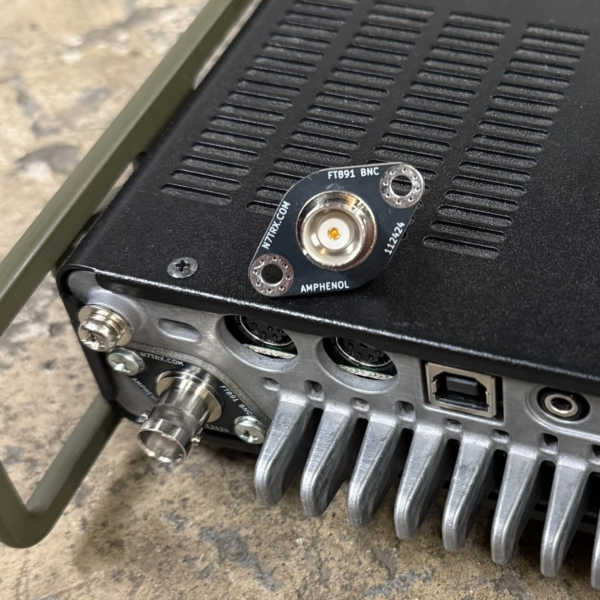

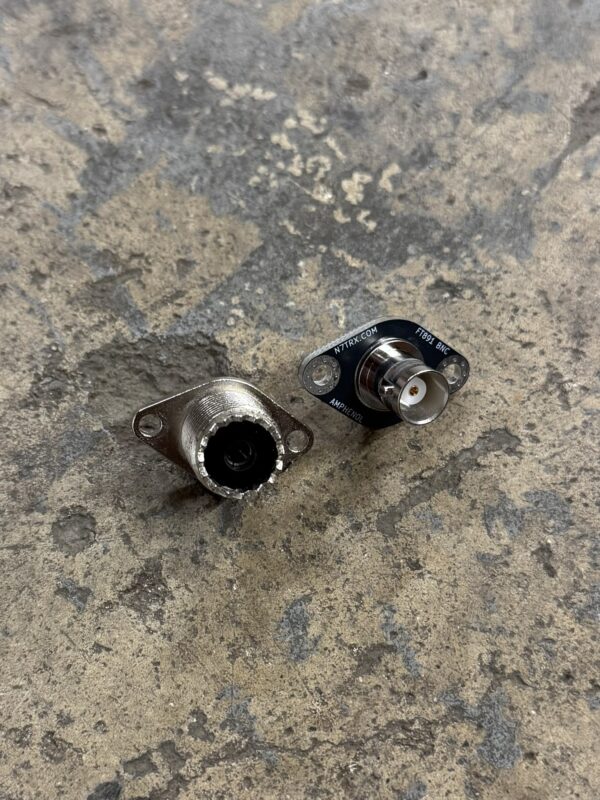

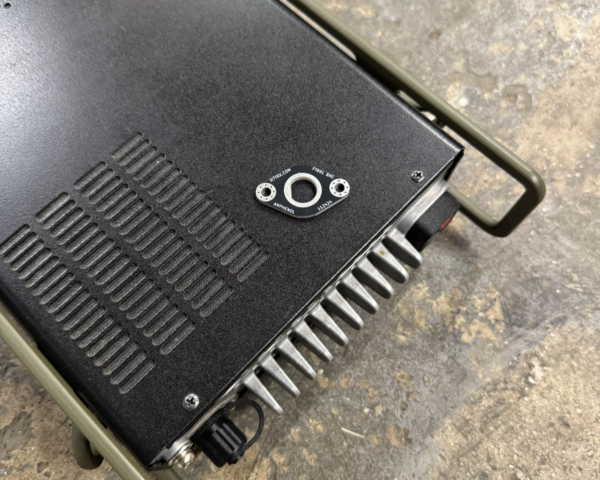

While two-hole chassis mount BNC connectors are available, their flange dimensions and hole spacing do not match the factory two-hole UHF layout. To bridge this gap, we offer a heavy-duty, 2mm-thick PCB featuring full front and back copper pours and plated through-holes. This provides a robust RF ground plane and a secure attachment point for high-quality panel-mount BNC options, such as the included Amphenol 112424 bulkhead connector.
This kit includes:
- One FT891 Conversion PCB
- One Amphenol 112424 BNC Connector

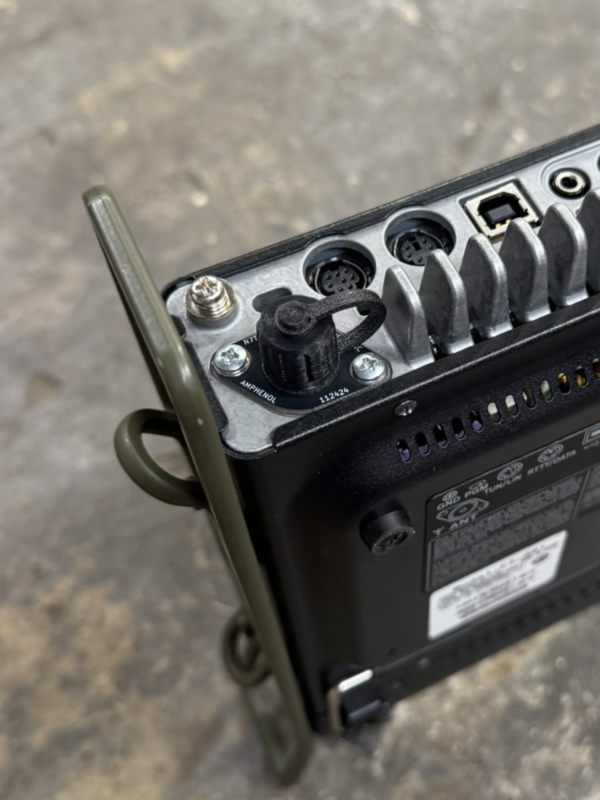

- One BNC Cap
- One Cap tether
Required tools:
- Soldering Iron
- Solder
- #1 Philips screw driver
- #2 Philips screw driver
Compatibility:
If you have test fit this conversion kit into a radio that is not listed, and you would like to share the results, please email me at Jered@n7trx.com.

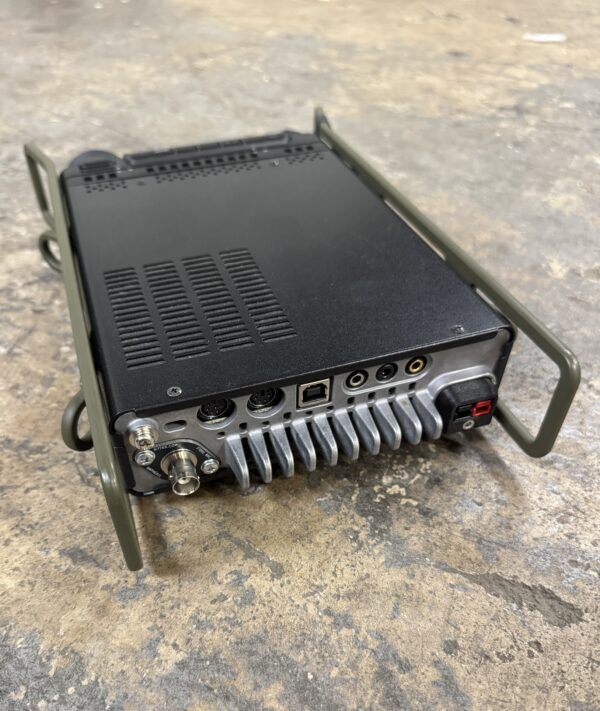

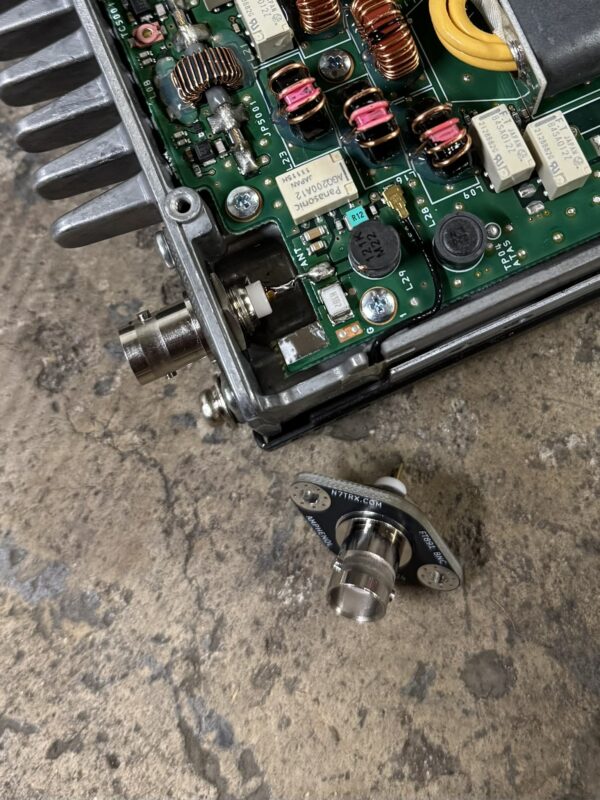

- Yaesu FT-891: (Easy) Guaranteed fitment. Single wire solder connection.
- Yaesu FTM-150R: (Moderate) Requires slight trimming of BNC dielectric. Two large solder pads require high power soldering iron and large tip.
- Yaesu FT-857D: Not yet tested, more info soon.
The Fine Print
Use at Your Own Risk: This product is an independent project and is provided as-is. This kit is intended for educational, evaluation, or hobbyist assembly. By purchasing and installing this board, you accept all risks. The creator/seller accepts no liability from the use or misuse of this product. The installation of this product may void your warranty.
